2010 Honda CBF600ABS - Specification

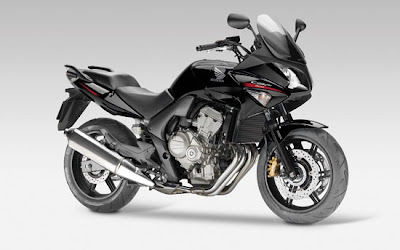

2010 Honda CBF600ABS
2010 Honda CBF600ABS
2010 Honda CBF600ABS
2010 Honda CBF600ABS
2010 Honda CBF600ABS

2010 Honda motorcycle CBF600ABS is packed with high performance with advanced technology.2010 Honda CBF600S ABS boasts a fuel-injected engine that has been specially tuned for extra low-end torque and smooth, user-friendly power delivery.In 2010 Honda motorcycle CBF600ABS was also found Semi-Naked CBF600S that will provide comfort, high performance and ease in any situation sengan plus good aerodynamics system makes can CBF600S high speed cutting wind. With the fuel injection system which makes perfect power distribution becomes more optimal, but it Braking is smooth and powerful, and the Combined ABS offers the extra reassurance of Honda's Combined Antilock Braking System.

FEATURES:
-Combined Braking System with ABS provides both the operating ease of linked brakes and the control of an advanced Anti-lock Braking System.
-Advanced die-cast aluminium frame keeps weight to a minimum while maintaining optimal stability for confident and sporty handling.
-Lightweight and compact fuel-injected 599cc inline-four engine is tuned for the most comfortable balance of performance and ease of use.
-Compliant 41mm telescopic front fork and Monoshock rear damper deliver smooth, confident handling.
-Three-position adjustable seat and two-position adjustable windscreen allow you to tailor your
-Sleek half fairing features air-directing ports that deflect air around you for better comfort while also enabling lighter, easier handling.
-Standard catalytic converter reduces exhaust emissions.
-CBF600S ABS for optimum comfort and control.

2010 Honda CBF600ABS - Canada Specifications

Engine Type Liquid-cooled inline-four
Displacement 599 cc
Bore & Stroke 67 mm x 42.5 mm
Compression Ratio 11.6:1
Valve Train Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery PGM-FI electronic fuel injection
Transmission Six-speed
Final Drive O-ring-sealed chain
Front Suspension 41 mm fork with adjustable preload; 120 mm (4.7 in) travel
Rear Suspension Single shock with adjustable preload; 125 mm (4.9 in.) travel
Tires 120/70ZR - 17 radial front; 160/60ZR - 17 radial rear
Brakes Front dual 296 mm discs with three-piston calipers; rear single 240 mm disc with single-piston caliper. Combined Braking System with ABS
Seat Height 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.)
Seating capacity Two
Wheelbase 1,490 mm (58.7 in.)
Curb Weight 222 kg (489 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity 20 litres
Colour Pearl Nightstar Black


2010 Honda CBF600ABS - Australia Specifications

MSRP: $N/A AU
Model CBF600S C-ABS
Mold Type E-type for UK

Engine
Type
Liquid-cooled 4-stroke 16-valve DOHC inline-4
Displacement 599.3cm³
Bore x Stroke 67 x 42.5mm
Compression Ratio 11.6 : 1
Max. Power Output 57kW / 10,500min-1
Max. Torque 59Nm / 8,250min-1
Idling Speed 1,300min-1
Oil Capacity 3.5 litres

Fuel System
Carburation PGM-FI electronic fuel injection
Throttle Bore 32mm
Aircleaner Dry, cartridge-type paper filter
Fuel Tank Capacity 20 litres
Fuel Consumption 17.9km/l (11.1m/l / 50.6mpg) WMTC mode (World Motorcycle Test Cycle)

Electrical System

Ignition System
Computer-controlled digital transistorised with electronic advance
Ignition Timing 4° BTDC (idle) ~ 60° BTDC (12,000min-1)
Sparkplug Type CR8EH-9 (NGK); U24FER-9 (DENSO)

Starter Electric
Battery Capacity 12V / 8.6AH
ACG Output 333W
Headlights 12V, 55W x 1 (low) / 55W x 1 (high)

Drivetrain
Clutch Wet, multiplate with coil springs
Clutch Operation Mechanical; cable-actuated
Transmission 6-speed
Primary Reduction 2.111 (76/36)

Gear Ratios
1 2.750 (33/12)
2 1.938 (31/16)
3 1.556 (28/18)
4 1.304 (30/23)
5 1.150 (23/20)
6 1.042 (25/24)
Final Reduction 2.625 (42/15)
Final Drive O-ring sealed chain

Frame
Type Mono-backbone; gravity die-cast aluminium
Chassis
Dimensions 2,160 x 765 x 1,240mm
Wheelbase 1,490mm
Caster Angle 26°
Trail 110mm
Turning Radius 2.8m
Seat Height 785mm (±15mm)
Ground Clearance 130mm
Kerb Weight 222kg (F: 109kg; R: 113kg)
Max. Carrying Capacity 195kg
Loaded Weight 417kg (F: 144kg; R: 273kg)

Suspension Type
Front 41mm telescopic fork, 120mm axle travel

Rear
Monoshock damper with 7-step adjustable preload, 125mm axle travel

Wheels
Type Front U-section twin 6-spoke cast aluminium
Rear U-section twin 6-spoke cast aluminium
Rim Size Front 17M/C x MT3.50
Rear 17M/C x MT5.00
Tyre Size Front 120/70 ZR17M/C (58W)
Rear 160/60 ZR17M/C (69W)
Tyre Pressure Front 250kPa
Rear 290kPa

Brakes
Type Front
296 x 4.5mm dual hydraulic disc with Combined three-piston calipers, and sintered metal pads
Rear
240 x 5mm hydraulic disc with Combined single-piston caliper, and sintered metal pads
